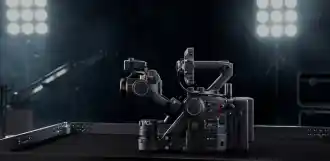

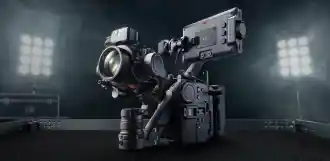

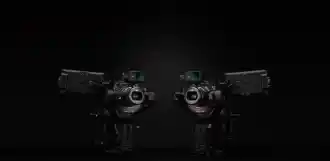

• This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
• Combination design reduces your setup time at the start of the day and in between setups and locations
• Modular components include:
  • Expansion plate with SDI, XLR, and timecode ports
  • Wireless video transmission
  • LiDAR range finder
  • X9 focus motor

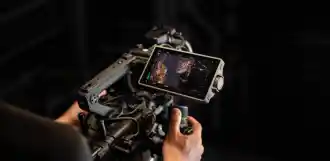

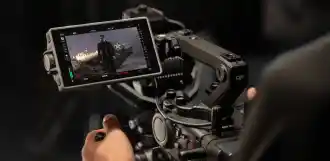

  • 7″ high-bright, touchscreen monitor
  • Left and right control handgrips

• The Zenmuse X9, DJI’s full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
• The Ronin 4D uses the CineCore 3.0 system to support internal recording of Apple ProRes Raw, ProRes 422 HQ, and H.264 video
• Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

• Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
• Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
• Tilt stabilization uses dual, symmetrical motors
• Pan and X (roll) axes with additional stiffness buffering
• Downward ToF (time of flight) sensor
• Forward and downward-facing dual-vision sensors
• Built-in IMU (inertial measurement unit) and barometer
• New and improved stabilization algorithm

• The D4’s DL lens mount supports DJI’s current selection of 16, 24, 35, and 50mm lenses
• Interchangeable lens mount can be swapped for use with Sony E-mount or Leica M-mount lenses
• Full-frame capture with all but the 16mm DL lens

• Captures 6K raw at rates up to 60 fps in full-frame 2.39:1
• Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1
• Captures up to 4K raw at rates up to 96 fps in Super 35 17:9
• Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
• Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
• Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

• 800/5000 dual native ISO
• EI 200 to 12800
• 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

• Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
• Especially handy for outdoor shoots with changing cloud cover
• Motorized filter system
• Carry in “built” mode for easy company moves

• LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33′ range
• Excellent focusing performance even in low-light environments
• Focus pulling can be viewed graphically, thanks to a built-in depth meter
• Intuitive and highly accurate focusing system
• Modular LiDAR focusing module attached to the front of the D4 rig

• Maintains focus, even when motion blur is produced by fast-moving subjects
• Detachable focus motor for use with manual lenses
• Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

• The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
• Operators can grab the focus wheel of the right handgrip at any time to manually focus
• Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

• DJI’s ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
• ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI’s CineCore 3.0 imaging system

• Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
• Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

• Top-notch stabilization in a lightweight form

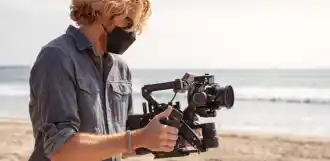

• Ideal for both solo operators as well as assistant-accompanied shoots
• Designed to counter footsteps from inexperienced gimbal shooters
• Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
• Sport mode is available with the touch of a button, accommodating faster-paced action
• Use in standard, underslung, jib, and crane setups

• Requires a ProSSD 1TB drive (included) to capture raw footage
  • USB Type-C port for external recording, no reader needed to offload footage
• Integrated CFexpress Type-B card slot

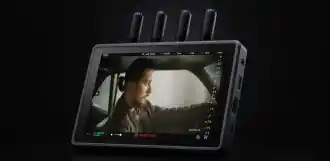

• The 7″ high-bright cd/m² 15 video monitor incorporates a wireless video receiver
  • Monitor expansion plate enables both HDMI and SDI output
  • Lightweight, touchscreen design with a wide color gamut display
  • Independent LUT applications for video recording, main monitor, main body HDMI, and remote monitor feeds
  • A protective cage is included with the monitor
• Dual transmission modes
  • Broadcast mode for multicasting to unlimited receivers
  • Control mode coordinates control between two receivers
• Connects to the handgrip(s) of the Ronin 4D, DJI Master Wheels, DJI Force Pro, or the DJI 3-Channel Follow Focus system
  • Enables camera control in addition to accurate focusing
• An integrated gyro sensor enables the monitor to be used as a remote motion controller for the Ronin 4D
• Mirror mode provides a control interface identical to the Ronin 4D’s integrated display, perfect for crane, jib, and other remote uses
• Micro-SD card recording with independent playback for each High-Bright monitor you are using

• Integrated stereo microphones capture dual-channel 24-bit audio
• Built-in 3.5mm audio input port and XLR port via expander plate

• Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
• Each battery provides up to 2.5 hours of capture time
• Batteries charge fully in approximately 1.5 hours
• Support auto-heating for cold weather use
• AC adapter for uninterrupted shooting

In the Box

• DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit
• Zenmuse X9-6K Gimbal Camera
• DL Mount
• DL Mount Body Cap
• DL Mount Lens Cap
• X9 Gimbal Base Cap
• Ronin 4D Gimbal Base Cap
• Main Body
• 2 x Handgrip
• Handgrip Extended Control Stick
• Top Handle
• High-Bright Main Monitor
• TB50 Battery Mount
• TB50 Intelligent Battery
• 2 x Handgrip Strap
• Power Adapter
• 8 x AC Power Cable
• TB50 Charging Adapter
• Baseplate
• LiDAR Range Finder/Focus Motor Cable
• USB Type-A to Type-C Cable

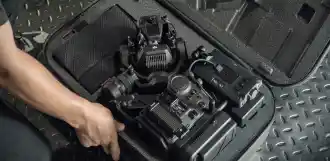

• Ronin 4D Carrying Case
• Ball-End Allen Key (3mm)
• 6 x 1/4″-20 Screw (10mm)
• LiDAR Range Finder
• LiDAR Range Finder Holder
• C-Shaped DL Mount Ring
• 2 x M2-3 Screw (3mm)
• Ball-End Allen Key (1.5mm)
