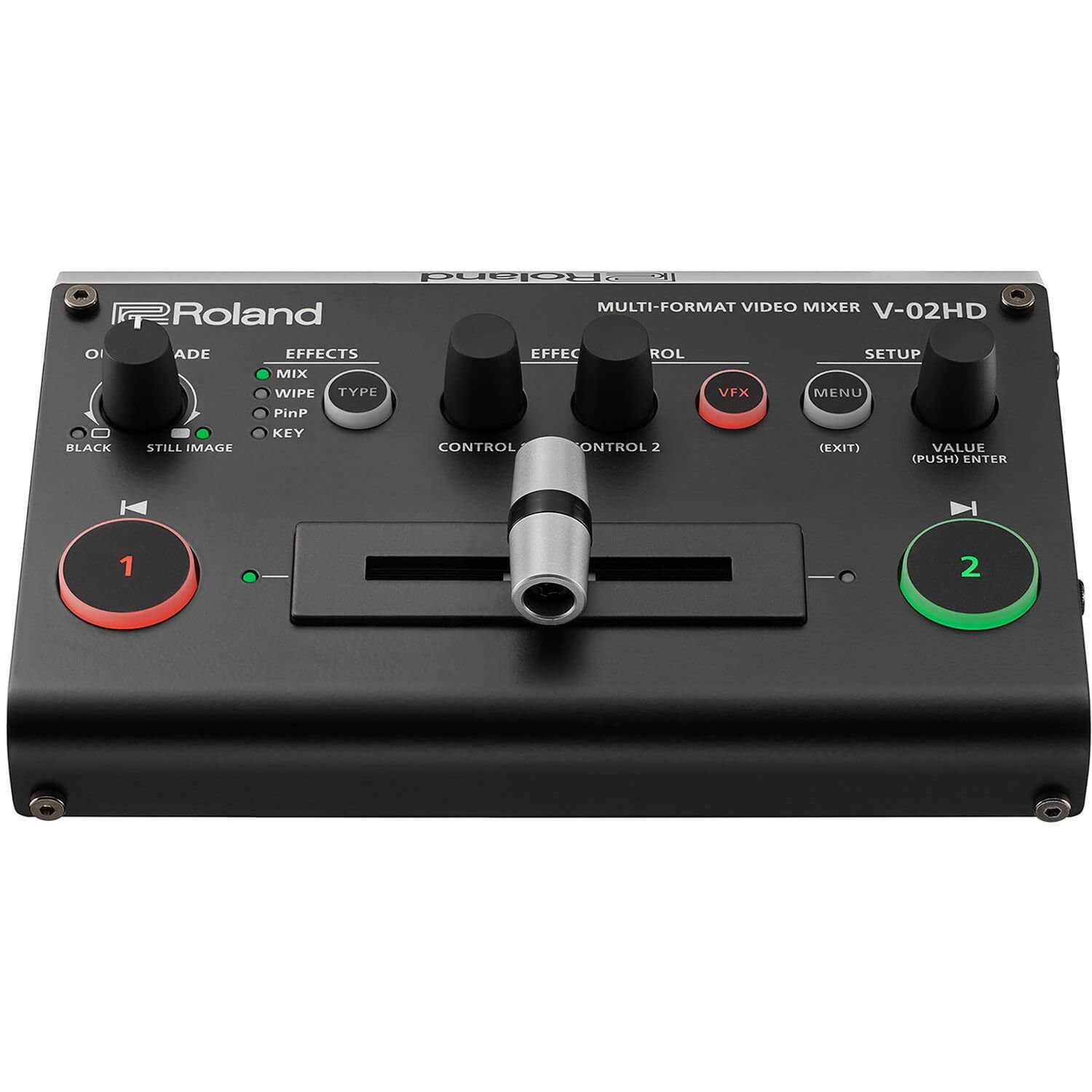

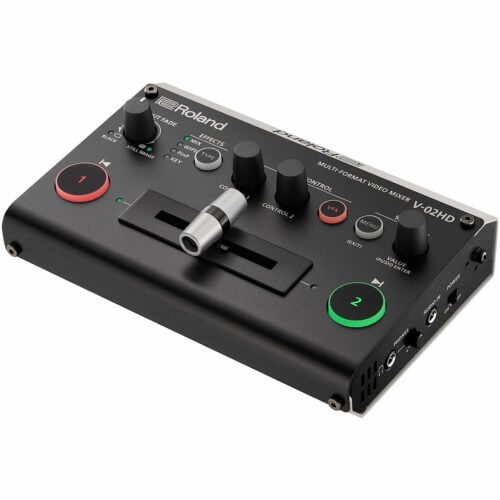

Roland V-02HD Multi-Format Video Mixer (ประกันศูนย์)

Roland
Availability:

In stock


Compare
Key Features
  • V-02HD Switcher
  • 2 x HDMI Inputs, 1 x HDMI Output
  • Discrete Scalers on Inputs and Output
  • 14 x Real-Time Adjustable Effects

฿23,540

In stock

Switcher Features

The V-02HD is a single unit that incorporates a simple switcher, high-quality scaler, input expander, audio solution, and inline video effects/compositor.
The V-02HD takes the HDMI output from two cameras and seamlessly switches to a connected recorder or live streaming encoder. You can switch between cameras using the dedicated controls.
Audio from both cameras and external sources can be mixed together within the V-02HD and monitored through a dedicated headphone output.
The switched output is embedded in real time and output over HDMI for reliable recording or live streaming.
A preview output enables you to view the menu without the overlay appearing on the program output.
The switcher operates with 10-bit 4:4:4 processing.
Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions.
You can embed and de-embed audio, both analog and digital.
The V-02HD has built-in three-band EQ and dynamics.

Effects

Video

  • Transition: Cut, mix (dissolve), wipe (9 types)
  • Composition: PiP (square, circle, diamond), key (luminance key, chroma key)
  • Visual effects: mosaic, wave, RGB replace, colorpass, negative, colorize, posterize, silhouette, emboss, find edge, monocolor, hue offset, saturation offset, value offset
  • Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio/video: white or black), test pattern output

Audio

  • Delay
  • High-pass filter
  • Compressor
  • Noise gate
  • Equalizer
  • Multiband compressor
  • Limiter
  • Test tone output

Other Functions

  • Preset memory (8 types)
  • Panel lock function
  • EDID emulator
  • Auto scan
  • Auto input detect

Related

brands

Roland

Video Processing

4:4:4 (YPbPr), 10-Bit

Broadcast System

NTSC
PAL

NTSC PAL

Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576p/i: 50
480p/i: 59.94

Computer (60 Hz)
1920 x 1200 (WUXGA)
1600 x 1200 (UXGA)
1400 x 1050 (SXGA+)
1280 x 1024 (SXGA)
1366 x 768 (FWXGA)
1280 x 800 (WXGA)
1024 x 768 (XGA)
800 x 600 (SVGA)
640 x 480 (VGA)

1920 x 1200: 60 (Reduced Blanking)

Output Formats

Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576p: 50
480p: 59.94

Computer (60 Hz)
1920 x 1200 (WUXGA)
1600 x 1200 (UXGA)
1400 x 1050 (SXGA+)
1280 x 1024 (SXGA)
1366 x 768 (FWXGA)
1280 x 800 (WXGA)
1024 x 768 (XGA)
800 x 600 (SVGA)

1920 x 1200: 60 (Reduced Blanking)

Audio Processing

Sampling Rate: 24-Bit, 48 kHz

Audio Formats

Linear PCM, 24-Bit, 48 kHz, 2-ch

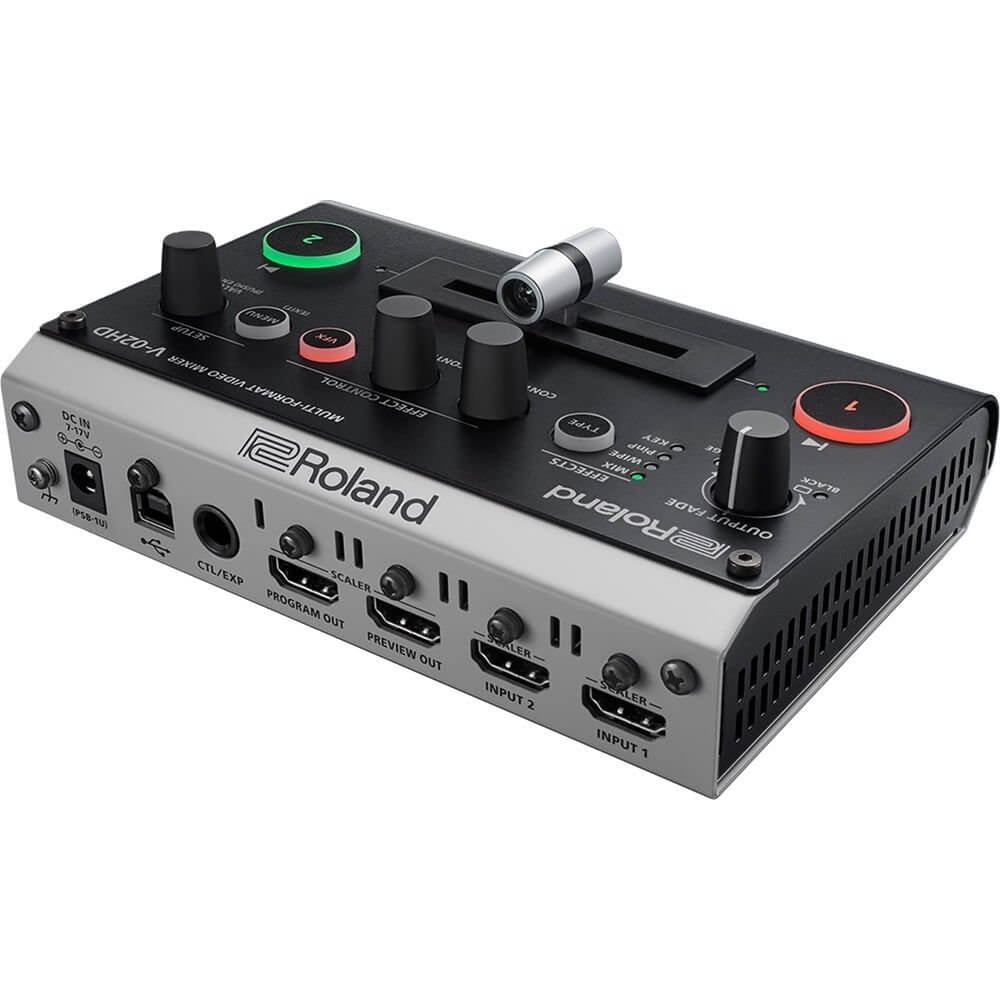

Connectors

Input
2 x HDMI Type A (Shared with Video)

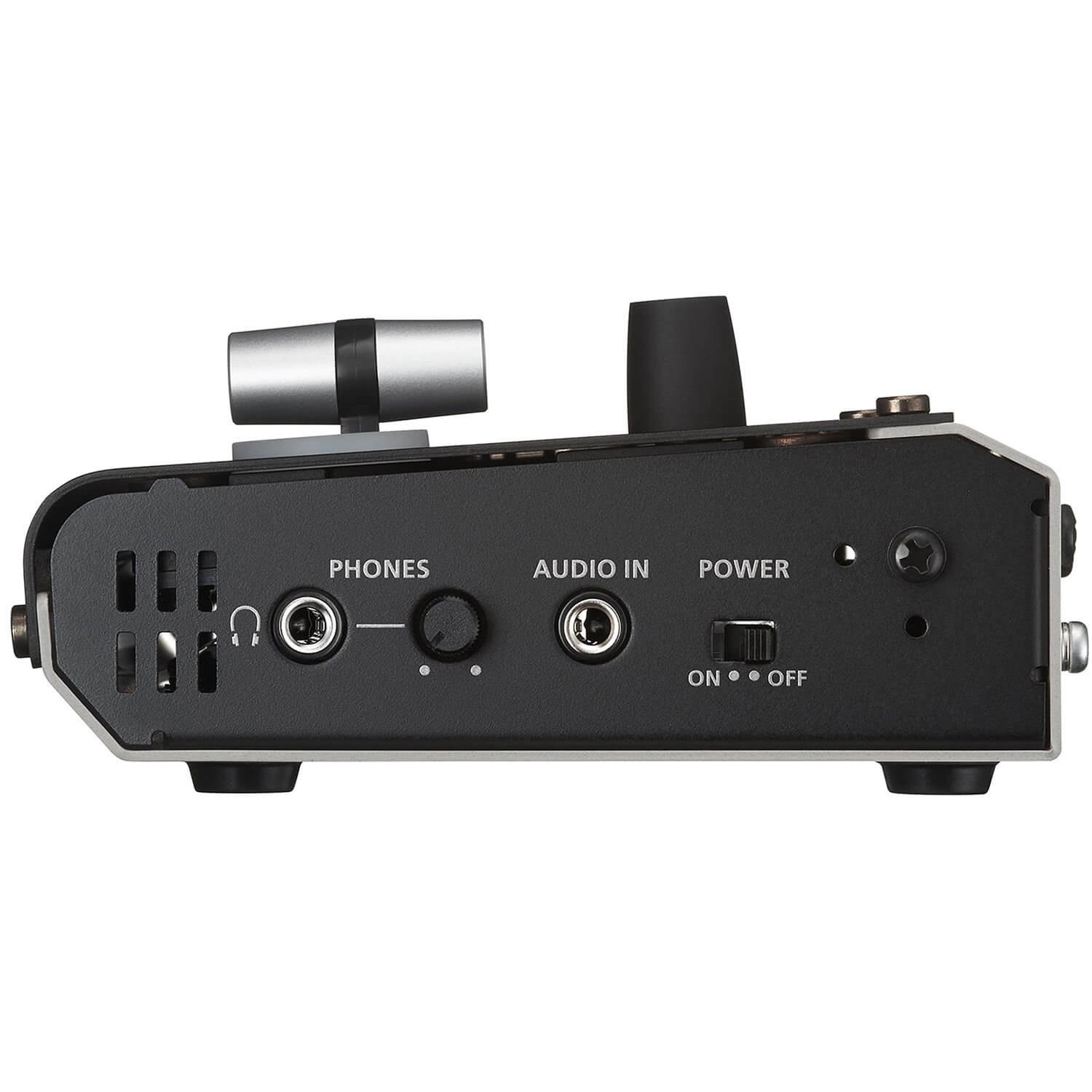

1 x 3.5 mm Stereo

Output
1 x HDMI Type A (Program, Shared with Video)
1 x HDMI Type A (Preview, Shared with Video)
1 x 3.5 mm Stereo Mini

Other Specs

Input Level
-10 dBu (+8 dBu Max)

Output Level
Phones: 92 + 92 mW (32 Ohms)

Input Impedance
45 kOhms

Output Impedance
Phones: 10 Ohms

Mounting

Tripod: 1/4"-20 Threaded Mounting Hole
Desktop: 4 x Rubber Feet

Interface

USB Memory: USB Type-B (For Backup from PC)
CTL/EXP: 1/4" TRS Phone Type

Power

Supply: AC Adapter
Current Draw: 1.1 A
Power Consumption: 10 W

Operating Temperature

32 to 104°F / 0 to 140°C

Dimensions

6.30 x 4.25 x 2.01" / 16 x 10.8 x 5.1 cm

Weight

1.3 lb / 0.6 kg
