RICOH GR III HDF
RICOH GR III HDF และ GR IIIx HDF
- เพิ่มฟิลเตอร์ HDF (Highlight Diffusion Filter) ซึ่งเป็นฟิลเตอร์ที่ได้รับการติดตั้งเข้ามาในตัวกล้องสองรุ่นใหม่นี้ โดยจะให้ผลที่ทำให้ส่วนสว่างภายในภาพดูมีความนุ่มนวลขึ้น ให้เสน่ห์ และสร้างความประทับใจที่แตกต่างไปจากภาพตามปกติ แต่ยังคงให้คุณภาพของภาพที่ยอดเยี่ยมเช่นเดียวกับกล้องในรุ่นเดิม

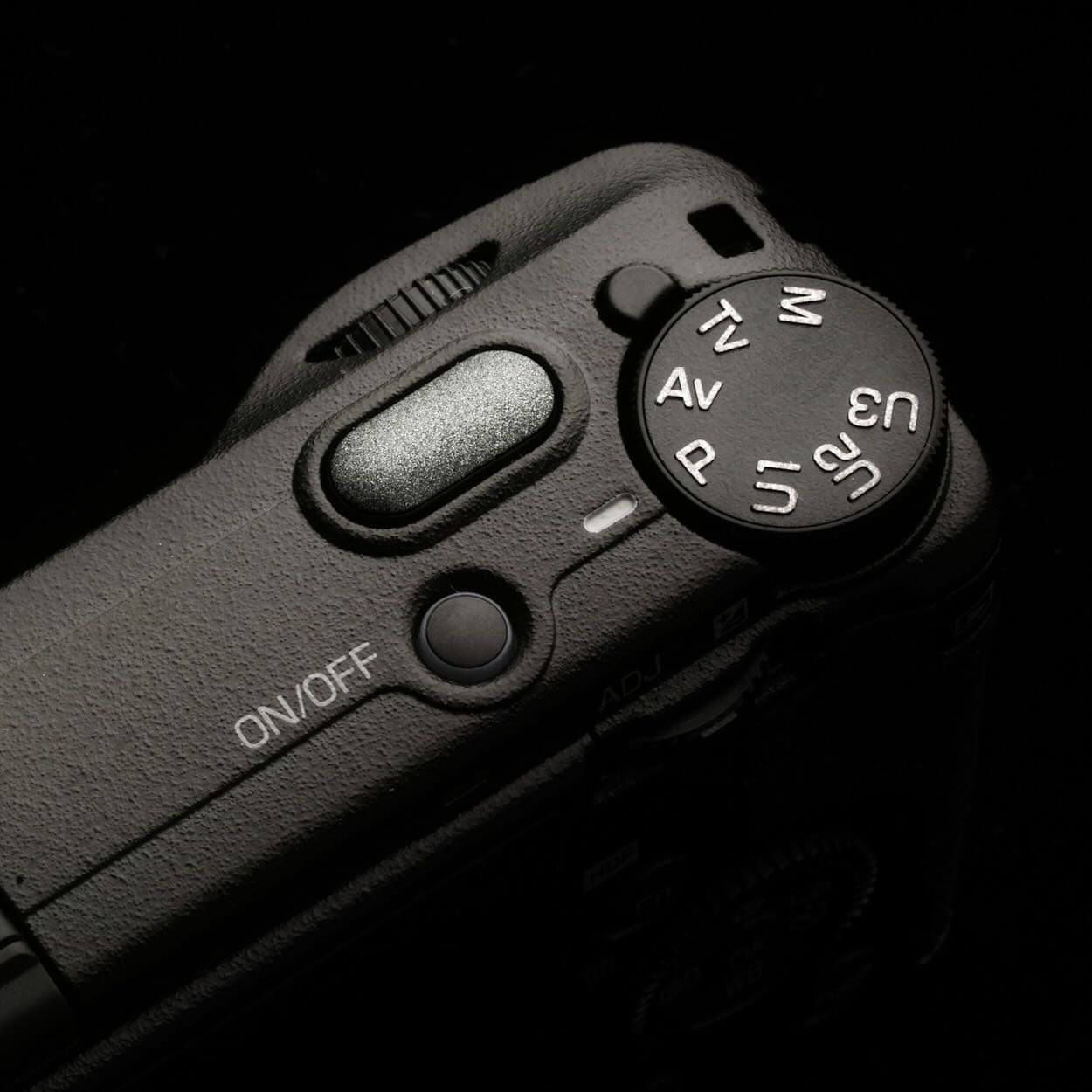

- ปุ่มชัตเตอร์ได้รับการออกแบบพิเศษเป็นสีเทาเงิน (grayish silver) เพื่อให้โดดเด่น และเป็นเอกลักษณ์ของกล้องในเวอร์ชันนี้

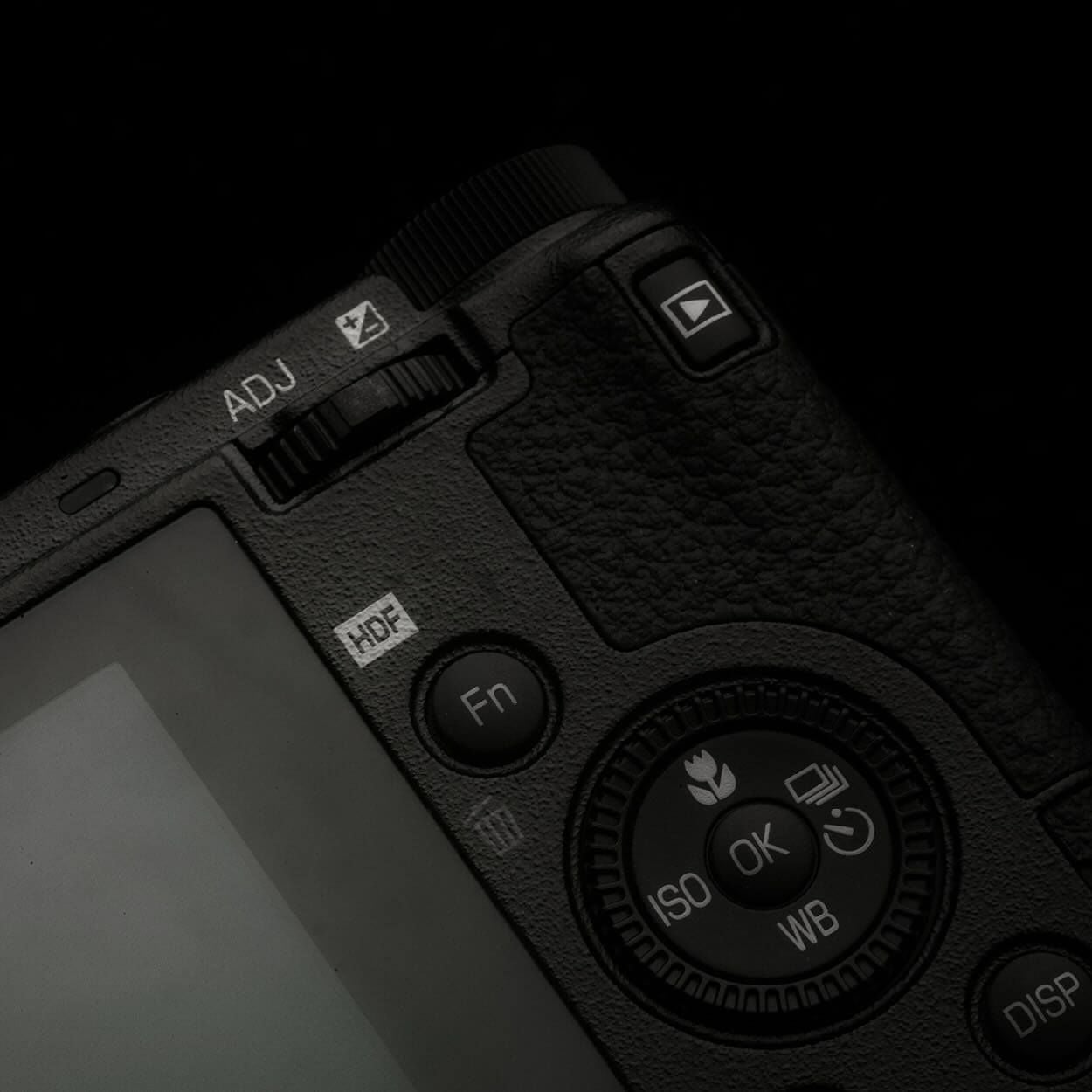

- ปุ่ม Fn (Function) ถูกตั้งค่าให้เป็นคีย์ลัดสำหรับเปิด/ปิด ฟิลเตอร์ HDF (Highlight Diffusion Filter)โดยเฉพาะ ซึ่งสามารถเข้าไปเลือกตั้งค่าจากในเมนูก็ได้
- เพิ่มฟังก์ชั่นในการปรับตั้งค่า White Balance ให้สามารถบันทึกค่าเก็บไว้เลือกใช้งานล่วงหน้าได้*
- ฟีเจอร์ระบบโฟกัสภาพใหม่ “Zone Select AF”* ที่สามารถย้ายชุดกรอบโฟกัส AF แบบ 3×3 (9 กรอบโฟกัส) รองรับการสัมผัสหน้าจอ LCD (Touch Screen)
- ฟังก์ชั่นใหม่ที่มีในกล้อง RICOH GR III HDF และ GR IIIx HDF จะสามารถอัพเดทเฟิรม์แวร์ให้กับกล้อง RICOH GR III/IIIx Series ที่ออกมาก่อนหน้านี้ได้ !!ยกเว้น!! ความพิเศษของฟิลเตอร์ HDF (Highlight Diffusion Filter) ที่จะเป็นเอกลักษณ์ของ “Expansion Model ”
HDF (Highlight Diffusion Filter) ON/OFF Comparison
- By diffusing incoming light, the filter reduces overall image contrast and blurs whites in bright areas, giving the image a soft, fluffy appearance.
- HDF (Highlight Diffusion Filter) is a filter printed using Ricoh’s long-standing inkjet Printing technology. Highlights are diffused and surrounding areas are blurred.
- *ND filter is not installed and is replaced by HDF. See here for more details.
24.2MP APS-C CMOS Sensor and GR Engine 6
Featuring an updated design, a 24.2MP APS-C CMOS sensor pairs with a new GR Engine 6 to produce high-resolution 14-bit DNG or JPEG stills with impressive tonality, natural color rendering, and high sensitivity from ISO 100-102400. In addition to full-resolution, wide-angle images, a pair of useful crop modes—35mm at 15MP and 50mm at 7MP—let you simulate the look of working with longer focal lengths.
In addition to stills shooting, the GR III is also capable of recording Full HD 1080 video at 60p, 30p, and 24p frame rates.
Prime Wide-Angle Lens
A fixed prime 18.3mm lens offers a comfortable 28mm equivalent wide-angle lens, which is complemented by a bright f/2.8 maximum aperture to suit working in a variety of lighting conditions. The optical construction incorporates six elements in four groups, including two aspherical elements that help to reduce spherical aberrations and distortion for improved sharpness and accurate rendering. Two focusing modes also suit working with general subjects, from 3.9″ to infinity, while a dedicated macro setting benefits working with close-up subjects within a 2.4-4.7″ range. An internal two stop-effective (ND 0.6) filter is also available for either slowing the shutter speed or permitting working with a wider aperture setting, and the lens has a nine-blade diaphragm to contribute to a smooth bokeh quality. Additionally, the redeveloped lens design also results in greater contrast and measures 1.5mm thinner than previous GR/GR II digital cameras.
Shake Reduction System
Featured for the first time in a GR camera, a 3-axis Shake Reduction System helps to minimize the appearance of camera shake in order to promote sharper handheld shooting at slower shutter speeds. The Shake Reduction System has been optimized for use with the built-in 28mm-equivalent lens, which renders it smaller and more effective. Additionally, the SR unit also offers moiré reduction and dust removal capabilities.
Body Design
- The hallmark feature of the GR-series has been its compact, pocketable size while still retaining a large image sensor and bright prime lens.
- Integrated 3.0″ 1.037m-dot LCD features a capacitive touchscreen design for intuitive, familiar operation during shooting, playback, and menu navigation.
- The rear layout of the camera has been completely redesigned and prioritizes a larger, more comfortable thumb grip along with easily accessible physical dials. Additionally, the ADJ lever, FN button, and Touch AF operations can be programmed to handle specific assignable functions for more personalized control.
- Start-up time has been reduced to 0.8 sec and Hybrid AF performance has been quickened for more seamless operation.
- Integrated Bluetooth LE and Wi-Fi afford wireless connectivity between the camera and a paired mobile device, and allows you to embed location info within your files as well as transfer files to your mobile device, even when the camera is turned off.
- Included DB-110 rechargeable lithium-ion battery offers approximately 200 shots per charge.
- USB Type-C port allows you to transfer files or recharge the battery in-camera.
อ่านรายละเอียดสินค้า Ricoh GR III HDF Digital Camera เพิ่มเติม คลิก
Specifications
| RICOH GR III | RICOH GR III HDF | RICOH GR IIIx | RICOH GR IIIx HDF | ||
|---|---|---|---|---|---|
| Lens | Lens Construction | 6 elements in 4 groups (2 aspherical lens elements) | 7 elements in 5 groups (2 aspherical lens elements) | ||
| Focal Length, Aperture | 18.3mm (Approx. 28mm in 35mm equivalent focal length), F2.8～F16 | 26.1mm (Approx. 40mm in 35mm equivalent focal length), F2.8～F16 | |||
| Image Capture Unit | Image Sensor | Type: Primary color filter CMOS. Size: 23.5mm x 15.6mm | |||
| Effective Pixels | Approx. 24.24 megapixels | ||||
| Sensitivity (Standard output) | ISO100～102400: Auto (ISO Auto Lower/Upper Limit and Minimum Shutter Speed can be set), Manual | ||||
| Image Stabilization | Sensor-shift shake reduction (SR)(3-axis) | ||||
| AA Filter Simulator | Moiré reduction using SR unit (Off, Low, High) | ||||
| Dust Removal | Image sensor cleaning using ultrasonic vibrations “DR II” | ||||
| File Formats | Still Image | File Format: RAW (DNG) 14bit, JPEG (Exif 2.3), DCF2.0 compliant Color Space: sRGB、AdobeRGB Recorded Pixels: 【3:2】L(24M:6000×4000), M(15M:4800×3200), S(7M:3360×2240), XS(2M:1920×1280) 【1:1】L(16M:4000×4000), M(10M:3200×3200), S(5M:2240×2240), XS(1.6M:1280×1280) |
|||
| Movie | File Format: MPEG4 AVC/H.264 (MOV) Recorded Pixels: Full HD (1920×1080, 60p/30p/24p), Sound: Built-in stereo microphone Recording Time: Up to 25 minutes or 4GB; automatically stops recording if the internal temperature of the camera becomes high. |
||||
| Storage Medium | Internal Memory (Approx. 2GB), SD/SDHC/SDXC Memory Card (Conforms to UHS-I standards) | ||||
| Focus | Type | Hybrid AF (Image plane phase-matching and Contrast detection) | |||
| Focus Mode | Auto-area AF, Auto-area AF (Center)*1, Zone Select AF*2, Select AF, Pinpoint AF, Tracking AF, Continuous AF, MF, Snap (0.3m*1, 1.5m, 2m, 2.5m, 3.5m*1, 5m,∞), ∞ *1 The latest firmware is required to use the full feature. Click here for more details. *2 They will also be available for all GR III/GR IIIx series cameras with the new firmware update to be released at a later date. |
||||
| Full Press Snap | Performs shooting by focusing at the Snap distance with a single press of the Shutter Release Button or a touch of the LCD Monitor*
*The latest firmware is required to use the full feature with GR III. Click here for more details. |
||||
| Face/Eye Detection | ON, Use only in Auto-area, OFF
*The latest firmware is required to use Eye detection with GR III. Click here for more details. |
||||
| Focus Range (From lens face) | Normal: Approx. 0.1m～∞, Macro Mode: Approx. 0.06m～0.12m | Normal: Approx. 0.2m～∞, Macro Mode: Approx. 0.12m～0.24m | |||
| Exposure | Exposure Mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure, Snap Distance Priority*
*The latest firmware is required to use the full feature. Click here for more details. |
|||
| Metering Mode | Multi-segment, Center-weighted, Spot, Highlight-weighted | ||||
| Shutter Speed | 1/4000 sec. – 30 sec. (Limit by aperture setting F2.8: 1/2500 sec, F5.6 or greater: 1/4000 sec.) Timed Exposure (10sec. – 20min.), Bulb, Time |
||||
| EV Compensation | Still Image: ±5EV, 1/3EV steps, Movie: ±2EV, 1/3EV steps | ||||
| ND Filter (2EV) | AUTO, ON, OFF | – | AUTO, ON, OFF | – | |
| White Balance | Auto White Balance, Multi Auto White Balance, Daylight, Shade, Cloudy, Fl. – Daylight Color, Fl. – Daylight White, Fl. – Cool White, Fl. – Warm White, Tungsten, CTE, Manual White Balance, Color Temperature, Custom1, Custom2, Custom3*
*They will also be available for all GR III/GR IIIx series cameras with the new firmware update to be released at a later date. |
||||
| Fine Adjustment | Adjustable ±14 steps on A-B axis or G-M axis | ||||
| Drive Mode | Drive | Single Frame Shooting, Continuous Shooting, Bracketing, Multi-exposure, Interval Shooting, Interval Composite | |||
| Self-timer | 10 sec., 2 sec., OFF | ||||
| Shooting Functions | Crop | 35mm, 50mm, OFF | 50mm, 71mm, OFF | ||
| Image Control | Standard, Vivid, Monotone, Soft Monotone, Hard Monotone, Hi-Contrast B&W, Positive Film, Negative Film**, Bleach Bypass, Retro, Cross Processing*, HDR Tone, Custom1, Custom2
Adjust parameters: Saturation, Hue, High/Low Key Adjustment, Contrast, Contrast (Highlight), Contrast (Shadow), Sharpness, Shading, Clarity, Toning, Filter Effect, Grain Effect*, HDR Tone Level, Color Tone* (Adjust parameter varies depending on the selected image setting) **The latest firmware is required to use the full feature. Click here for more details. |
||||
| Dynamic Range Correction | Highlight Correction, Shadow Correction | ||||
| Noise Reduction | Slow Shutter Speed Noise Reduction, High-ISO Noise Reduction | ||||
| Horizon Correction* | SR On: correction up to 1 degrees, SR Off: correction up to 1.5 degrees
*The latest firmware is required to use the full feature with GR III. Click here for more details. |
||||
| HDF（HightLight Diffusion Filter） | – | ON, OFF | – | ON, OFF | |
| Display | Display magnification (4x, 16x), Grid display (4×4 Grid, 3×3 Grid), Histogram, Bright area warning, Electronic Level | ||||
| Playback Functions | Playback View | Single frame, Multi-image (20, 48 frames), Display magnification (up to 16x, 100% view and Quick Zoom view available), Histogram (Y histogram, RGB histogram), Grid display (3×3 Grid, 4×4 Grid), Bright area warning, Auto Image Rotation, Calendar Filmstrip Display*
*The latest firmware is required to use the full feature.Click here for more details. |
|||
| Base Parameter Adjustment | Normal editing, Monotone editing* Parameter: Brightness, Saturation, Filter Effect*, Hue, Toning*, Contrast, Sharpness (Adjust parameter varies depending on the selected editing setting)*The latest firmware is required to use the full feature with GR III. Click here for more details. |
||||
| RAW Development | Aspect Ratio, JPEG Recorded Pixels, Color Space, White Balance, Image Control, Peripheral Illumination Correction, Sensitivity, High-ISO Noise Reduction, Shadow Correction | ||||
| Edit | Delete, Protect, Image Rotation, Image Copy, File Transfer, Resize, Cropping (Aspect ratio and Slant adjustment* available), Levels Adjustment, White Balance Adjustment, Color Moiré Correction, Movie Edit (Cut), Movie Edit (Divide)
*The latest firmware is required to use the full feature with GR III. Click here for more details. |
||||
| LCD Monitor | Type | 3.0 inch TFT color LCD (aspect ratio 3:2), Approx. 1037K dots, Wide viewing angle, Air-gapless tempered glass | |||
| Touch Screen | Capacitive sensing method | ||||
| Adjustments | Brightness, Saturation, Blue/Amber, Green/Magenta, Outdoor View Setting: ±2 Steps | ||||
| Wireless LAN | Standards | IEEE 802.11b/g/n (HT20) (Wireless LAN standard protocol) | |||
| Frequency (Center Frequency) | 2412MHz～2462MHz (1ch～11ch) | ||||
| Security | Authentication: WPA2, Encryption: AES | ||||
| Bluetooth® | Standards | Bluetooth® v4.2 (Bluetooth Low Energy） | |||
| Frequency (Center Frequency) | 2402MHz～2480MHz (CH0～CH39) | ||||
| Interfaces | USB Type-C™ | Battery Recharge/Power Supply (Optional AC Adapter required), Data Transfer: MTP, Video output: DisplayPort over USB-C (DisplayPort Alternative Mode) | |||
| Hotshoe | Compatible with P-TTL Auto Flash Flash Mode: Flash On, Flash On+Red-eye, Slow-speed Sync, Slow Sync+Red-eye Flash Exposure Compensation: -2.0 -+1.0 |
||||
| Lens adapter pin | Available | ||||
| Power Supply | Battery Type | Rechargeable Battery DB-110 | |||
| AC Adapter | AC Adapter Kit K-AC166(Optional) | ||||
| Battery Life | Number of recordable images: Approx. 200 images, * With a fully-charged Rechargeable Lithium-ion Battery under the temperature at 23°C. Tested in compliance with CIPA standard. Actual results may vary depending on the shooting condition.Playback time: Approx. 180 minutes * The playback time is a guide based on RICOH’s measurement method . The actual number differs according to usage conditions. |
||||
| Dimensions and Weight | Dimensions | Approx. 109.4(W)×61.9(H)×33.2(D)mm (excluding protrusions) | Approx. 109.4(W)×61.9(H)×35.2(D)mm (excluding protrusions) | ||
| Weight | Approx. 257g (Included dedicated battery and SD memory card), Approx. 227g (Body only) | Approx. 262g (Included dedicated battery and SD memory card), Approx. 232g (Body only) | |||
| Included Accessories | Rechargeable Battery DB-110, USB Power Adapter, Power Plug, USB Cable I-USB166, Handstrap | ||||
| Language | English, French, Germany, Spanish, Portuguese, Italy, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkey, Greek, Russian, Thai, Korean, Simplified Chinese, Traditional Chinese, Japanese | ||||
Storage
| Mode | Fomat/Size | Aspect Ratio | Focal Length* | Number of Recorded pixels | Internal Memory 2GB |
SD Card 8GB |
|
| GR III | GR IIIx | ||||||
| Still image | RAW | 3:2 | 28mm | 40mm | 24M(6000 x 4000) | 40 | 150 |
| 3:2 | 35mm | 50mm | 15M(4800 x 3200) | 40 | 154 | ||
| 3:2 | 50mm | 71mm | 7M(3360 x 2240) | 41 | 157 | ||
| 1:1 | 28mm | 40mm | 16M(4000 x 4000) | 40 | 153 | ||
| 1:1 | 35mm | 50mm | 10M(3200 x 3200) | 41 | 156 | ||
| 1:1 | 50mm | 71mm | 5M(2240 x 2240) | 42 | 158 | ||
| RAW+ | 3:2 | 28mm | 40mm | 24M(6000 x 4000) | 31 | 117 | |
| 3:2 | 35mm | 50mm | 15M(4800 x 3200) | 34 | 129 | ||
| 3:2 | 50mm | 71mm | 7M(3360 x 2240) | 38 | 143 | ||
| 1:1 | 28mm | 40mm | 16M(4000 x 4000) | 34 | 128 | ||
| 1:1 | 35mm | 50mm | 10M(3200 x 3200) | 36 | 138 | ||
| 1:1 | 50mm | 71mm | 5M(2240 x 2240) | 39 | 148 | ||
| [L] （JPEG） |
3:2 | – | – | 24M(6000 x 4000) | 140 | 527 | |
| 1:1 | – | – | 16M(4000 x 4000) | 209 | 788 | ||
| [M] （JPEG） |
3:2 | – | – | 15M(4800 x 3200) | 218 | 820 | |
| 1:1 | – | – | 10M(3200 x 3200) | 324 | 1220 | ||
| [S] （JPEG） |
3:2 | – | – | 7M(3360 x 2240) | 437 | 1646 | |
| 1:1 | – | – | 5M(2240 x 2240) | 645 | 2428 | ||
| [XS] （JPEG） |
3:2 | – | – | 2M(1920 x 1280) | 1253 | 4717 | |
| 1:1 | – | – | 1.6M(1280 x 1280) | 1810 | 6813 | ||
