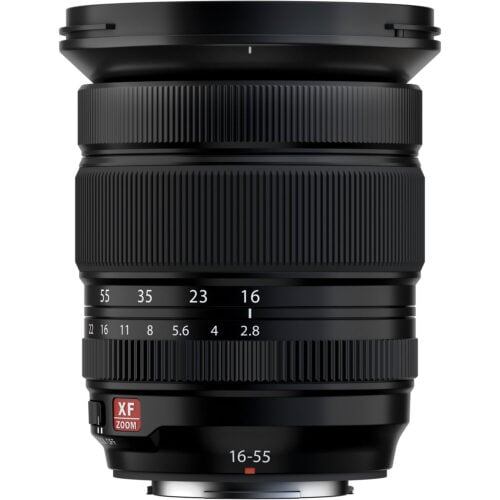

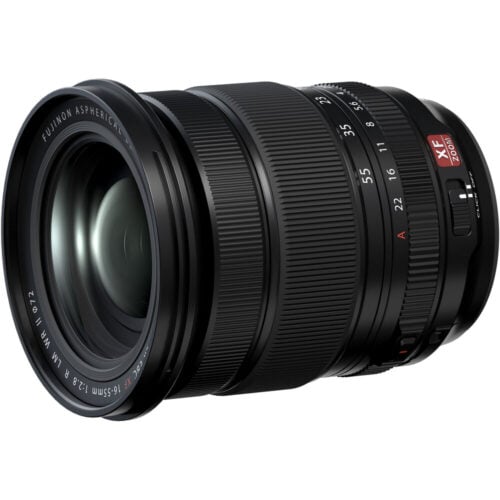

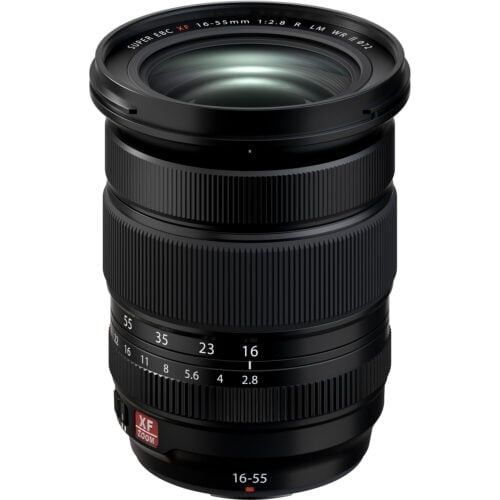

FUJIFILM XF 16-55mm f/2.8 R LM WR II Lens
Bert Stephani
FUJIFILM X-T2 16mm｜F2.8｜1/250｜ISO400
XF16-55mmF2.8 R LM WR
Its optical design comprises aspherical elements, extra-low dispersion elements, and a super extra-low dispersion element, all of which help to reduce distortion and color fringing for improved sharpness and color accuracy throughout the zoom range. A fluorine coating has also been applied to protect the front element by repelling water, oil, and fingerprints.
- Three extra-low dispersion elements and a Super ED element are used to greatly reduce color fringing and chromatic aberrations in order to produce high clarity and color fidelity throughout the zoom range.
- Four aspherical elements control distortion and spherical aberrations, which helps to improve sharpness and realize more accurate rendering.
Ou Haichun (China)
FUJIFILM X-H2 16mm | F5.6 | 1/40 | ISO800
XF16-55mmF2.8 R LM WR II
Quiet Autofocus
- A Linear Motor autofocus system delivers smooth, near-silent performance that is now faster and more accurate, which is especially beneficial to video applications and when working in noise-sensitive areas.
- Focus wobble and subject searching is also minimized for clarity during important takes.
- The de-clickable aperture ring allows for quiet and precise control of the lens during video recording.
- Rounded 11-blade diaphragm delivers smoother, more rounded bokeh to add a pleasing out-of-focus quality to selective focus and shallow depth of field techniques.
Weather-Resistant Design
The lens body incorporates extensive weather sealing to protect against dust and moisture, enabling worry-free use in inclement conditions and freezing temperatures as low as 14°F.
Lens Configuration
MTF Chart
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
Wide
Spatial frequency 15 lines/mm
Spatial frequency 45 lines/mm
Telephoto
Spatial frequency 15 lines/mm
Spatial frequency 45 lines/mm
Specifications
| Type | FUJINON XF16-55mmF2.8 R LM WR | ||
| Lens configuration | 17 elements 12 groups
(includes 3 aspherical and 3 extra low dispersion elements) |
||
| Focal length | f=16-55mm (24-84mm in 35mm format equivalent) | ||
| Angle of view | 83.2°- 29° | ||
| Max. aperture | F2.8 | ||
| Min. aperture | F22 | ||
| Aperture control | Number of blades | 9 (rounded diaphragm opening) | |
| Step size | 1/3EV (19 steps) | ||
| Focus range | |||
| Normal | 0.6m – ∞(whole zoom position) | ||
| Macro | 30cm – 10m (Wide), 40cm – 10m (Telephoto) | ||
| Max. magnification | 0.16x (Telephoto) | ||
| External dimensions : Diameter x Length*1 (approx.) | ø83.3mm x 106.0mm (Wide) / 129.5mm (Telephoto) | ||
| Weight*2 (approx.) | 655g | ||
| Filter size | ø77mm | ||
In the Box
- FUJIFILM XF 16-55mm f/2.8 R LM WR II Lens
- FUJIFILM FLCP-72 II Front Lens Cap
- FUJIFILM RLCP-001 Rear Lens Cap
- Lens Hood
- Wrapping Cloth
