Desview R5II 5.5″ On-Camera Touch Monitor (ประกันศูนย์)

Desview
Availability:

Out of stock


  • จอมอนิเตอร์ IPS ขนาด 5.5 นิ้ว  / 14.0 cm
  • ความสว่างสูงถึง 800 nits / cd/m2
  • รองรับการบันทึกวิดีโอผ่าน SD/SDHC/SDXC
  • รองรับ input สูงสุด 4K 24p
  • Resolution Full HD 1920×1080
  • มีช่อง 3.5 mm Headphone Output

ติดต่อขอใบเสนอราคา →

฿5,600

Out of stock

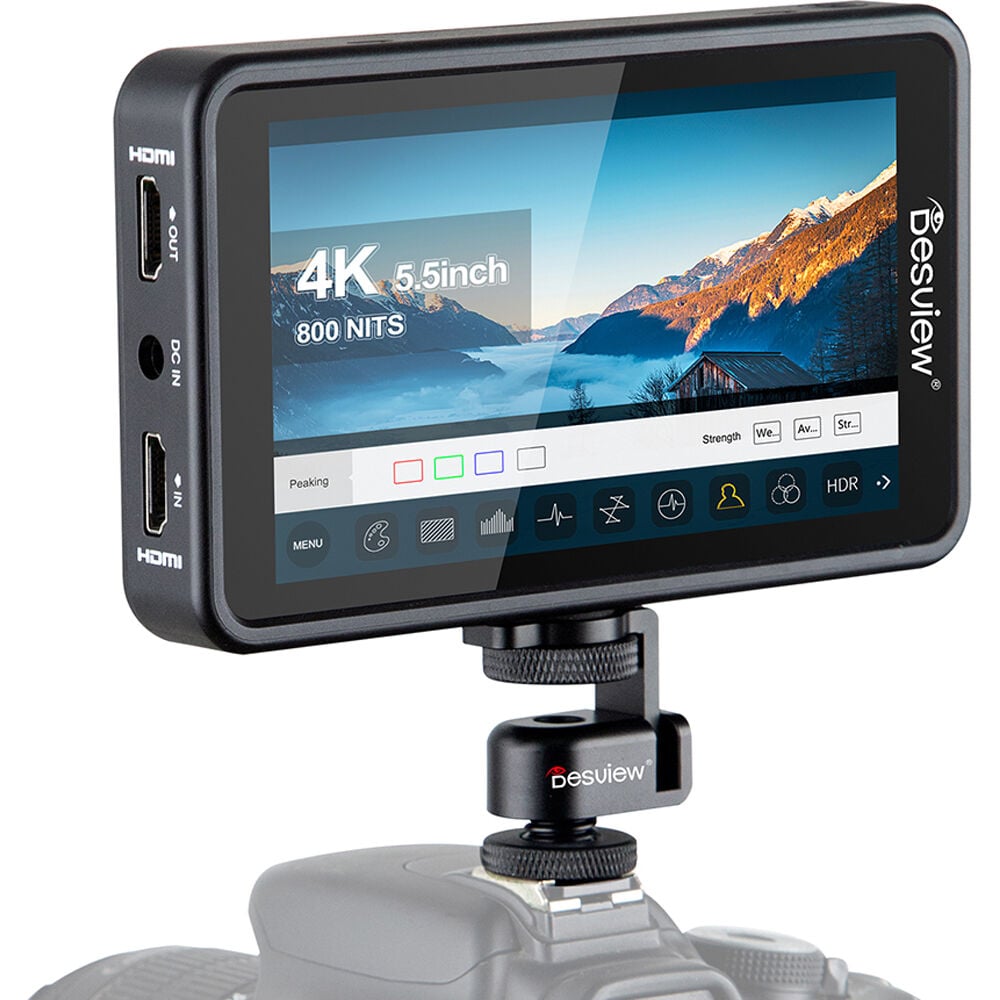

Desview R5II 5.5″ On-Camera Touch Monitor

จอมอนิเตอร์IPS ขนาด 5.5 นิ้ว สีสันสดใส ความสว่างสูงถึง 800nits รองรับ input สูงสุด 4K 24p รองรับการจ่ายพลังงานได้หลากหลาย ผ่าน DC , NP-F , E6 รองรับ LUTS ผ่าน SD Card

R5II 5.5 Inch Touch Screen Monitor

  • Full HD 1920×1080 resolution panel
  • Touch screen panel with 178°viewing angle
  • Supports HDMI input and output

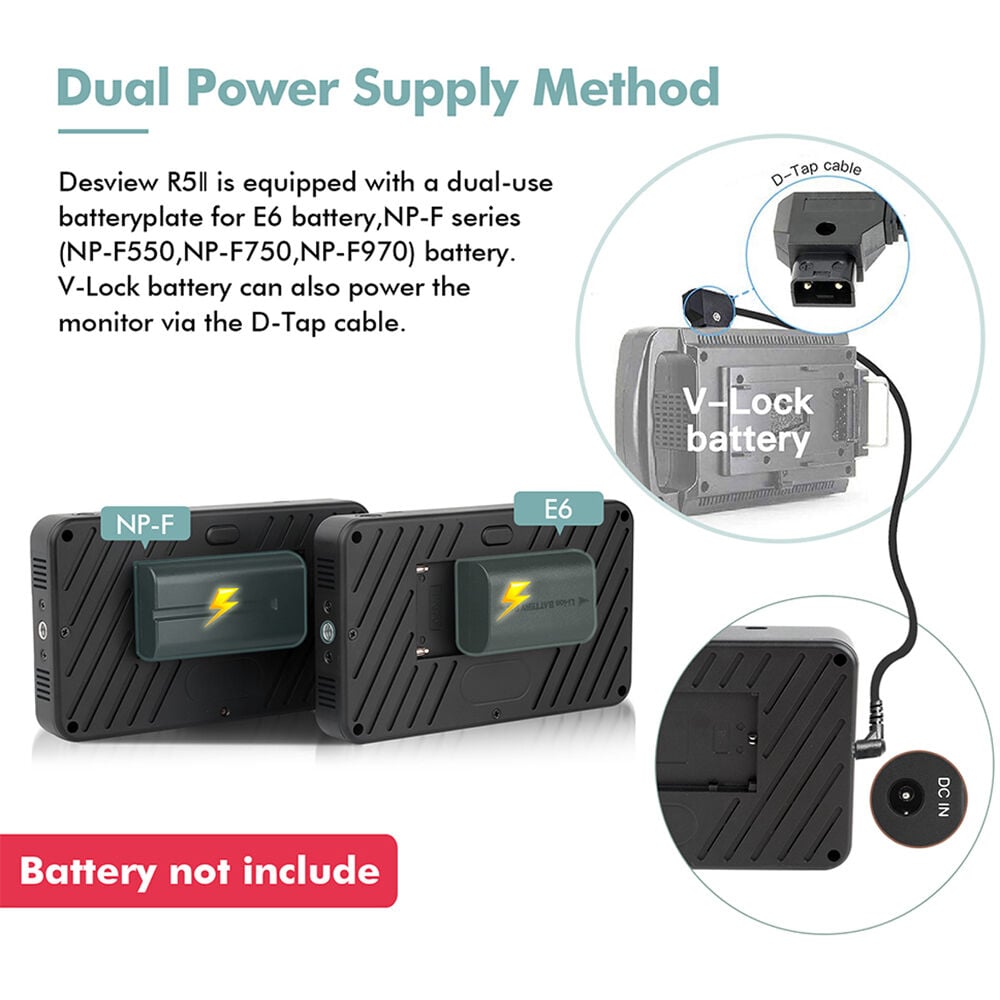

  • Support NP-F series and E6 batteries power supply
  • Supports custom 3D Luts to preview
  • Professional monitoring features Histogram, Waveform, Vectorscope, All wave, HDR, Peaking, False color, etc.
  • Equipped with sun hood, cold shoe, Mini HDMI cable, Micro HDMI cable, D-tap cable, SD card, Microfiber cloth, Instruction manual.

อุปกรณ์ในกล่อง Desview R5II

1. Standard Accessories:
2. Micro HDMI Cable
3. Mini HDMI Cable

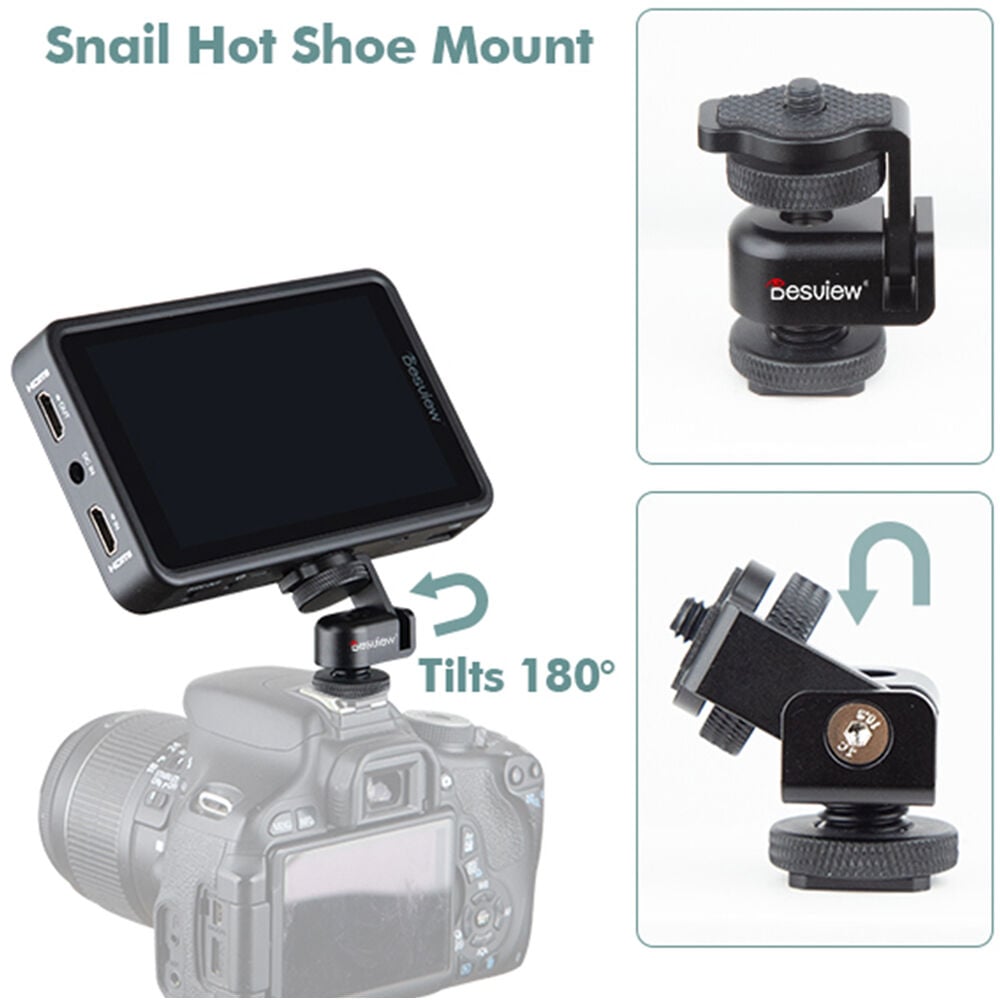

4. Cold Shoe + Hex Wrench
5. D-Tap Cable
6. Sun Hood
7. Microfiber Cloth
8. User Manual

Desview R5II



Display

Panel Type
IPS-Type LCD
Display Size
5.5″ / 14.0 cm
Screen Area
4.76 x 2.68″ / 120.96 x 68.04 mm
Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
178°
Touchscreen
Yes
Maximum Brightness
800 nits / cd/m2
Contrast Ratio
1000:1
Dot Pitch
0.021 x 0.063 mm
Bit Depth / Color Support
8-Bit (16.7 Million Colors)
HDR Compatibility
Hybrid Log Gamma
Pixels Per Inch (ppi)
401 ppi
Real-Time LUT Monitoring
SDR, HDR
Image Controls
Anamorphic De-Squeeze, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Split – Half, Vectorscope, Waveform, Zebra



Inputs / Outputs

Video I/O
1 x HDMI 1.4 Input
1 x HDMI 1.4 Loop Output
Audio I/O
1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
1
Power I/O
1 x Barrel 2.1 mm (24 VDC) Input
1 x Barrel 2.1 mm (8 VDC) Output
Other I/O
1 x USB-A 2.0 Input
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility



Format Support

Video Format
HDMI
DCI 4K: 24
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94



Power

DC Input Power
7 to 24 VDC
Battery Type
1 x LP-E6, L-Series
Power Consumption
9 W (Maximum)
0.1 W (Standby)



Mounting

Mounting
2 x 1/4″-20 Female



Environmental

Operating Temperature
12 to 87°F / -20 to 55°C
Storage Temperature
-22 to 149°F / -30 to 65°C



General

Dimensions
6 x 3.5 x 0.9″ / 151.4 x 89.1 x 22 mm
Weight
7.1 oz / 200 g

Desview R5II Desview R5II Desview R5II Desview R5II Desview R5II Desview R5II Desview R5II Desview R5II Desview R5II
